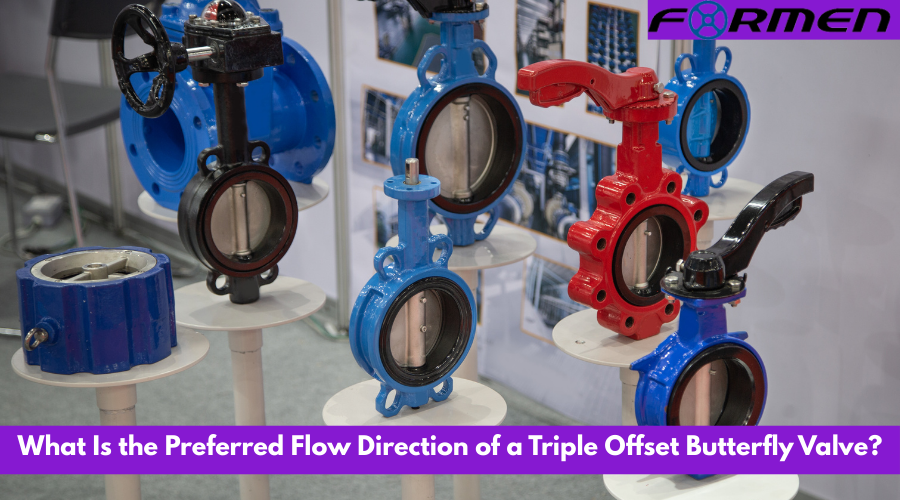

What Is the Preferred Flow Direction of a Triple Offset Butterfly Valve?

Aug 12,2025

If you operate a commercial pipeline system, every component in that network is an investment. Pumps, joints, valves, all these represent capital and operational value. Yet, time and again, operators install  butterfly valves with giving any thought to their preferred flow direction. It’s as if this small detail somehow doesn’t matter. But the reality is that this “small” detail can decide the difference between a system that runs like a well-oiled machine or something that becomes a source of recurring frustration, repair costs, and operational delays. A triple offset butterfly valve is a component of a basic and simple design consisting of a rotating disc that opens or closes to regulate flow. But the angle, position, and direction it’s installed in can enhance efficiency and prevent wear and tear of the system. Once you understand how much is at stake, it’s hard to imagine treating flow direction as optional. Understanding Preferred Flow Direction The term “preferred flow direction” simply means the manufacturer has designed the valve to work best when fluid moves through it in a specific way. For many general-purpose butterfly valves, this is marked with an arrow on the body. Some triple offset valves are designed to be bidirectional, but even in those  there is usually a direction that yields smoother operation, reduced turbulence, and less mechanical strain. In the preferred flow direction, the disc seals tightly  against the seat. And the operation is much smoother as less torque is required. The valve opens to its widest extent without fighting against unnecessary pressure or turbulence. But in the reversed flow direction the story is different. You might see higher torque demand on actuators, uneven wear on the sealing surface, and reduced control over flow rates. The Cost of Wrong Flow Direction So what happens if you ignore that little arrow and install your valve the “wrong” way? At first, maybe nothing noticeable. But over weeks and months, the symptoms start creeping in. Pressure losses increase. Operators report sluggish valve response. Maintenance teams find worn seals and distorted discs far earlier than expected. For commercial pipeline operators, this technical inefficiency carries a negative impact in the form of more expensive operational cost. Every time you replace a valve before its maximum usage life, you’re paying for the part, the labor, and the downtime. Moreover, if the installed part is misaligned additional complications can occur that cause a leak in a critical section. The consequences would add to the damages, such as lost product, environmental penalties, or even safety hazards. In a high-stakes pipeline environment, a wrongly oriented valve can turn into a very expensive oversight. Bidirectional Flow Doesn’t Mean Indestructible Valve A commonly held misconception is the belief that if a butterfly valve is labeled “bidirectional,” installation direction doesn’t matter at all. In theory, bidirectional valves are designed to seal against flow from either side. In practice, they still have an orientation that minimizes wear and maximizes performance. For example, elastomer-lined butterfly valves often have a seating profile that allows easier closure and reduced disc flutter when flow comes from the preferred direction. Reverse the flow, and you may still get a seal, but at the cost of higher wear rates and operational effort. Over time, that means more frequent maintenance cycles and shorter valve life. When Direction Becomes Critical: Offset and High-Performance Designs If your system is fitted with double-offset or triple-offset butterfly valves, keeping the flow direction correct is really necessary. These valves have specific design features like disc and shaft placements for fail-proof sealing under specific flow conditions. If the flow direction is reversed the valve may never fully seal, even if it is screwed on tightly. In high-pressure or high-temperature commercial pipelines, this can lead to disastrous results. The seating system in such valve designs only delivers on the basis of precise geometry. Since accurate dimensions of valves minimize contact and friction during operation. Wrong flow direction  puts stress on parts that are fragile and cannot bear the additional load. So correct flow direction is not just an installation recommendation; it is an important specification that should not be overlooked if the pipeline system is to perform reliably without any mishaps or breakdown. A Hypothetical Scenario: When Wrong Flow Direction Turns Costly Let’s imagine a situation that could very well happen in a commercial pipeline operation. A large-scale water distribution facility decides to upgrade part of its network to meet growing demand. One of the upgradation components are several 600 mm double-offset butterfly valves rated for high-pressure service. Everything appears to be functioning fine after the installation is done and the commission tests report no problem. But then three months later, the operators notice a drop in pressure in one zone. Inspection done by the maintenance team finds reveals that the valves are needing  far more torque to operate than before. Eventually, leaks start to occur at the seats location in two valves The root of the problem? Those valves were installed in the reverse flow direction. Instead of sealing efficiently, the discs have been scraping against the seat under constant flow, wearing down the sealing surface faster than intended. The damage does not stop there, the actuators have been overworking, and the performance drop has finally reached a point where it’s affecting service. Resolving this issue means a lengthy procedure that will result in time wastage and increased labor costs. Moreover, the parts replacement will also cut into the budget. By the time everything’s back online, the total cost could easily be in the six-figure range. While this is a hypothetical, it’s grounded in the kinds of operational headaches and financial impacts that are a regular feature in real-world valve mis installations. For pipeline operators and owners the lesson from this scenario is that even a “minor” oversight like ignoring flow direction can become a major business problem in the blink of an eye. The Role of Manufacturer Guidance Every reputable butterfly valve manufacturer invests time and engineering resources into determining optimal flow direction and stem positioning. To take these recommendations lightly is a mistake since they’re the result of testing, and field experience. For commercial pipeline owners, the manufacturer’s documentation should be treated as a blueprint for efficiency and an industry best practice. If the guide says, “Flow this way,” it’s not a suggestion it’s the peak of productivity.           How to Ensure You’re Getting It Right In a busy installation environment, it’s surprisingly easy to get flow direction wrong. Valves can arrive without clear markings, or markings can get obscured by paint, grime, or corrosion. The safest approach is to verify direction during both the planning and installation stages. Make sure installation crews understand why it matters, not just that it’s “on the checklist.” Regular inspection rounds should also include checking valve orientation against flow patterns, especially after maintenance work or pipeline modifications. Catching a reversed installation early can save you thousands in repair and replacement costs. Conclusion At first glance, all of this may sound like technical nitpicking. But when you scale the impact across an entire commercial pipeline system, the stakes become clear. Correct valve orientation means lower energy costs, longer equipment life, fewer emergency repairs, and more predictable performance. In an industry where downtime can cost tens of thousands per hour, that’s not a detail, it’s a profit protector. As a pipeline owner, you’re balancing operational efficiency, capital investment, and risk management. Paying attention to something as fundamental as the flow direction of your butterfly valves is one of the easiest, most cost-effective ways to protect all three.

Uses Of Linear Actuators In The Industrial Area

Dec 16,2019

In this modern era, to complete multiple industrial automation tasks robots are used. They are often expensive, and to achieve many automation tasks; the industrial linear actuator is a smart choice. These are the most useful inventions of technology and made so many jobs easy and efficient. Industrial linear actuators used in a wide range of industries applications such as military, agriculture, food, material handling, and many more. It includes the high speed, industrial, miniature and mini-tube as well as track models. An actuator is easy to use and compatible with so many industries, which make them versatile, and accessible. Uses Of Linear Actuators In Industrial ApplicationsThere are multiple industrial applications, which use electric linear actuators. Here are some common and significant applications areas of these actuators are: Window AutomationActuators play an essential role in the window automation, and it the most talked area of electric linear actuators. It is easy to access, improved the ventilation system, which is useful for keeping the temperature of the building low at night, and extracts the harmful smoke or heat during any fire emergency. This is only possible with the help of electric linear actuators. Agriculture & OutdoorAgricultural industry implements multiple heavy-duty types of equipment, such as harvesters, spreaders, tractors, and many more, all of this equipment are required to carry out linear motion to operate them easily or maintain the amount as well as the spread of seeds fertilizers in the spreader. Theindustrial linear actuatoris specially made for this equipment is to operate and to move heavy machines from one place to another place. Agriculture industry and electric actuators used for solar tracking applications and the angle of the solar panels can adjust through the actuator. An electric linear actuator is design for enhancing the operational value of various farming of heavy equipment. They also increase the productivity of farming gear even in adverse conditions by enhancing their working capacity. Special Factory MachineryElectric linear actuators used for an increase in manufacturer industries to automate the equipment, such as material handlers, slurry tanks, and several automotive pieces of equipment. Factory machine used to cut the carpet rolls also employ linear actuators for raising or lowering the blades.These were some major industrial areas, which use the electric linear actuators to increase their overall efficiency, and better the performance. It is essential to those who want to buy linear actuator to consult experts and get this extremely useful equipment from trusted and experienced manufacturers and suppliers.

How Ball Valves Used In Residential Plumbing System

Apr 22,2020

Valves are used in both industrial and household plumbing. Their function is to change the flow of water, control flow, or shut-off water in the time of an emergency. Valves are considered an essential component of any drainage system. Valves are accessible everywhere in a wide variety of styles, each with a different design and playing a particular role. The valve is a kind of fitting that permits for regulation, control, and direction of liquids passing through a pipeline. Apart from the direction and regulation of water, these are also used to prevent back flow and regulate water pressure within a system. Valves grants landowners to separate their units of plumbing for maintenance, or shut off a water line when a leak sprout. They have a wide array of applications in most of the commercial and industrial sectors. Also, in wastewater treatment centers, chemical plants, pharmaceutical manufacturers, and automobile production all depend on valves for regulation and direction of fluids and vapors. Valves are manufactured of different materials such as plastics, lead-free brass, inox press fits, cast iron, and galvanized pipe. Ball valves are considered the most common types of valves than the other pipes. They regulate a water flow employing a rotational ball positioned in the midpoint of the valve. This ball has a deep core through its midpoint that manages the flow of water. Residential Application Ball valves are the most generally used shut-off valve. The ball valves are famous globally for their speed, reliability, and strength. They are extensively used in residential applications to turn the water on and off deprived of a pressure drop. The ball valves made of material generates a robust, watertight seal within the pipe, averting any liquid from escaping. Due to this tight inox seal, they also have applications in natural gas and chemical applications. Ball valves are also perfect for emergency applications where water needs quickly to be shut off and with convenience. The unique design of ball valves lets them avert or alter the flow of liquids through various ports. Because of these multi-ports, water can pass through four different channels.
