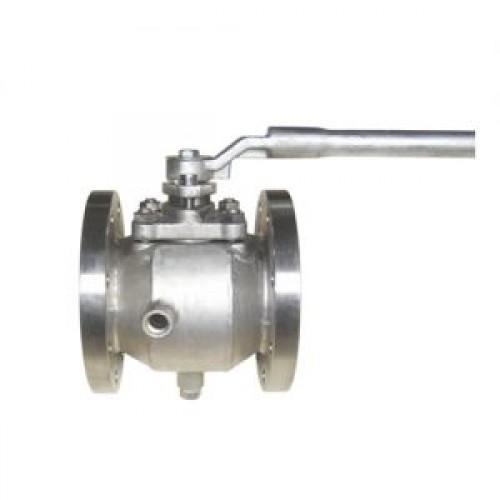

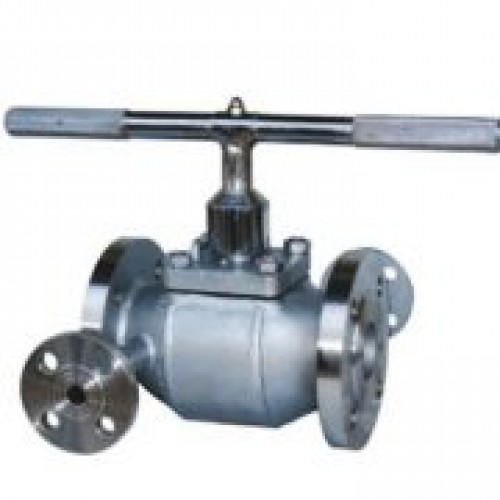

Steam Jacket Plug Valve

Plug valves are valves with cylindrical plugs which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the open plug.

Description:

  • Size: 3/4″-14″
  • Pressure Rating: 1.0 Mpa
  • Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
  • End: RF, RJT, BW
  • Design & Manufacture Standard: API 599, API 6D
  • Face to Face: ASME B16.10
  • End Connection: ASNI B16.5
  • Test Standard: API 598, API 6D
